● Integrated with PoE cascade arrangement

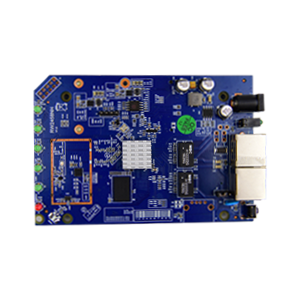

TECHNICAL SPECIFICATIONS
|
HARDWARE INFORMATION |
|
|
Processor主芯片 |
Qualcomm QCA9531（550 MHz） Network Processor |
|
System Memory内存 |
64MB（max 128MB optional）DDR SDRAM |
|
NOR Flash Flash |
16MB（max 16MB optional） |
|
Power Amplifier功放 |
SKY65174（单流150Mbps） |
|
Antenna天线接口 |
U.FL |
|

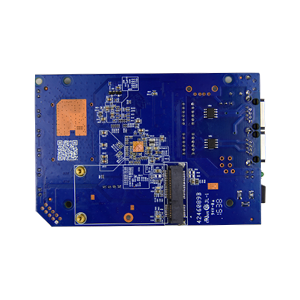

PCIe Slot |
1 x |
|
Ethernet端口 |
2 X 10/100 Base-T Ethernet Port（with Auto MDI / MDIX） |
|
Flat Cable排线 |
1 x10pin hole（孔） |
|
|
1 x 4pin header（TTL） |
|
Reset |
Push Button Reset按钮复位 |
|
Remote hardware reset（Optional）远程硬件复位(可选) |
|
|
Watch Dog Timer |
Yes |
|
PoE |
Passive PoE （range 9V-28V DC），可外接PD模块，转48V供电 |
|
DC Jack Input (optional) |
Range 9V-28V DC |
|
Power Consumption |
6W (Host Board only) |
|
RoHS Compliance |
Yes（Optional）(可选) |
|
Humidity |
Operating: 5% to 95%（non-condensing）Storage: Max.90% （non-condensing） |
|
|
Operating: -20ºC to 70ºC Storage: -40ºC to 90ºC |
|
Dimensions |
115 x 78 x 16（mm） |
|
Weight |
110g |
|
RF MODULE |
||||
|
频率范围 |
2.4~2.4835GHz |
|||
|
RF功率输出 |
500mW |
|||
|
接收灵敏度 |
802.11n_HT40 |
802.11n_HT20 |
802.11n_11g |
802.11n_11b |
|
-93dBm @MCS0 |
-94dBm @MCS0 |
-94dBm @6Mbps |
-95dBm @1Mbps |
|
|
-68dBm @MCS7 |
70dBm @MCS7 |
-72dBm @54Mbps |
-85dBm @11Mbps |
|
|
发射功率 |
802.11n_HT40 |
802.11n_HT20 |
802.11n_11g |
802.11n_11b |
|
28dBm @MCS0 |
28dBm @MCS0 |
28dBm @6Mbps |
28dBm @1Mbps |
|
|
26dBm @MCS7 |
26dBm @MCS7 |
27dBm @54Mbps |
27dBm @11Mbps |
|
|
APPLICATION |
RF MODULE |
|
802.11 WLAN |
Qualcomm QCA9887，n/ac ，433Mbps（200mW） |
|
SOFTWARE INFORMATION |
|
|
Firmware Support |
Redwave，OpenWRT，DD-WRT |
① The input power can come from an Ethernet port and it is fed to the other Ethernet port so that it can in turn drive another Passive PoE device.
② Serial Converter available to change the TTL signals on board to RS232 signals for debugging Configurations are subject to change without notice.
③ Please contact Redwave sales representatives for other available configurations.
