TECHNICAL SPECIFICATIONS
|

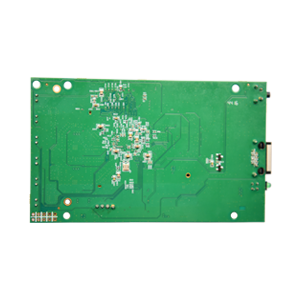

HARDWARE INFORMATION
|
|
|
RW5800ND-A
|
RW5800ND-B
|
|
Processor主芯片
|
Qualcomm AR9342（560 MHz）
Network Processor
|
Qualcomm AR9344（560 MHz）
Network Processor
|
|
System Memory内存
|
64MB（max
128MB optional）DDR SDRAM
|
|
NOR Flash Flash
|
8MB（max
16MB optional）
|
|
Power Amplifier功放
|
RFMD5542
|
SKY5004L
|
|
Antenna天线接口
|
U.FL
|
|
PCIe Slot
|
Nothing
|
1 x 9.2 mm Mini PCIe slot（USB）
|
|
Ethernet端口
|
1 X 10/100 Base-T Ethernet Port（with Auto MDI / MDIX）
|
2 X 10/100 Base-T Ethernet Port（with Auto MDI / MDIX）
|
|
Flat Cable排线
|
1 x10pin hole（孔）
|
|
Serial Port
|
1 x 4pin header（TTL）
|
|
Reset
|
Push Button Reset按钮复位
|
|
Remote hardware reset（Optional）远程硬件复位(可选)
|
|
Watch Dog Timer
|
Yes
|
|
PoE
|
Passive PoE （range 9V-28V DC）
|
|
DC Jack Input
(optional)
|
Range 9V-28V DC
|
|
Power Consumption
|
6W (Host Board only)
|
|
RoHS Compliance
|
Yes（Optional）(可选)
|
|
Humidity
|
Operating: 5% to 95%（non-condensing）Storage:
Max.90% （non-condensing）
|
|
Temperature Range
|
Operating: -20ºC to 70ºC Storage: -40ºC to 90ºC
|
|
Dimensions
|
115 x 78 x 16（mm）
|
|
Weight
|
110g
|
|
RF MODULE（AR9342）
|
|
频率范围
|
5.1～5.8GHz
|
|
RF功率输出
|
500mW
|
|
接收灵敏度
|
802.11n_HT40
|
802.11n_HT20
|
802.11a
|
802.11n_HT40
|
|
-88dBm @MCS0
|
-90dBm @MCS0
|
-90dBm@6-24Mbps
|
-88dBm @MCS0
|
|
-71dBm @MCS7
|
-72dBm @MCS7
|
-75dBm @54 Mbps
|
-71dBm @MCS7
|
|
发射功率
|
802.11n_HT40
|
802.11n_HT20
|
802.11a
|
802.11n_HT40
|
|
28dBm @MCS0
|
28Bm @MCS0
|
28dBm @6-24Mbps
|
28dBm @MCS0
|
|
19dBm @MCS7
|
20dBm @MCS7
|
26dBm @54 Mbps
|
19dBm @MCS7
|
|
SOFTWARE INFORMATION
|
|
Firmware Support
|
Redwave，OpenWRT，DD-WRT
|
① The input power can come from an Ethernet
port and it is fed to the other Ethernet port so that it can in turn drive
another Passive PoE device.
② Serial Converter available to change the
TTL signals on board to RS232 signals for debugging Configurations are subject
to change without notice.
③ Please
contact Redwave sales representatives for other available configurations.
